JPEG XL for imhex (+ pattern language thoughts)

the file!

Cutting to the chase: You can get the pattern at my imhex patterns repo. While I would have wished that I could parse every bit of the format, the entropy coding parts² are just a bit too complex to realistically implement in imhex’s not-that-much-of-a-programming language. As such, there’s a few deficiencies:

• Codestreams that have an embedded ICC pattern or a permuted TOC will return early with a warning.
• No fine-grained parsing is done of the actual frame groups—they’re just generic byte spans.

Despite those unimplemented paths, it seems to be one of the most complex imhex patterns that exist:

$ wc -l jxl.hexpat
1073 jxl.hexpat
$ wc -l /usr/share/imhex/patterns/* | sort -nr | head
   5594 /usr/share/imhex/patterns/dicom.hexpat
   1312 /usr/share/imhex/patterns/pe.hexpat
   1140 /usr/share/imhex/patterns/3ds.hexpat
   1121 /usr/share/imhex/patterns/java_class.hexpat
    934 /usr/share/imhex/patterns/stdfv4.hexpat
    921 /usr/share/imhex/patterns/dotnet_binaryformatter.hexpat
    835 /usr/share/imhex/patterns/elf.hexpat
    833 /usr/share/imhex/patterns/max_v104.hexpat
    726 /usr/share/imhex/patterns/selinux.hexpat

Subtract about 150 lines from mine due to comments. They’re quite dense lines as well! Most of the lines for the other high rankers are taken up by huge lookup tables or pattern matches, while JXL just has a ton of conditional branching, bitfields, & types inherent to it.

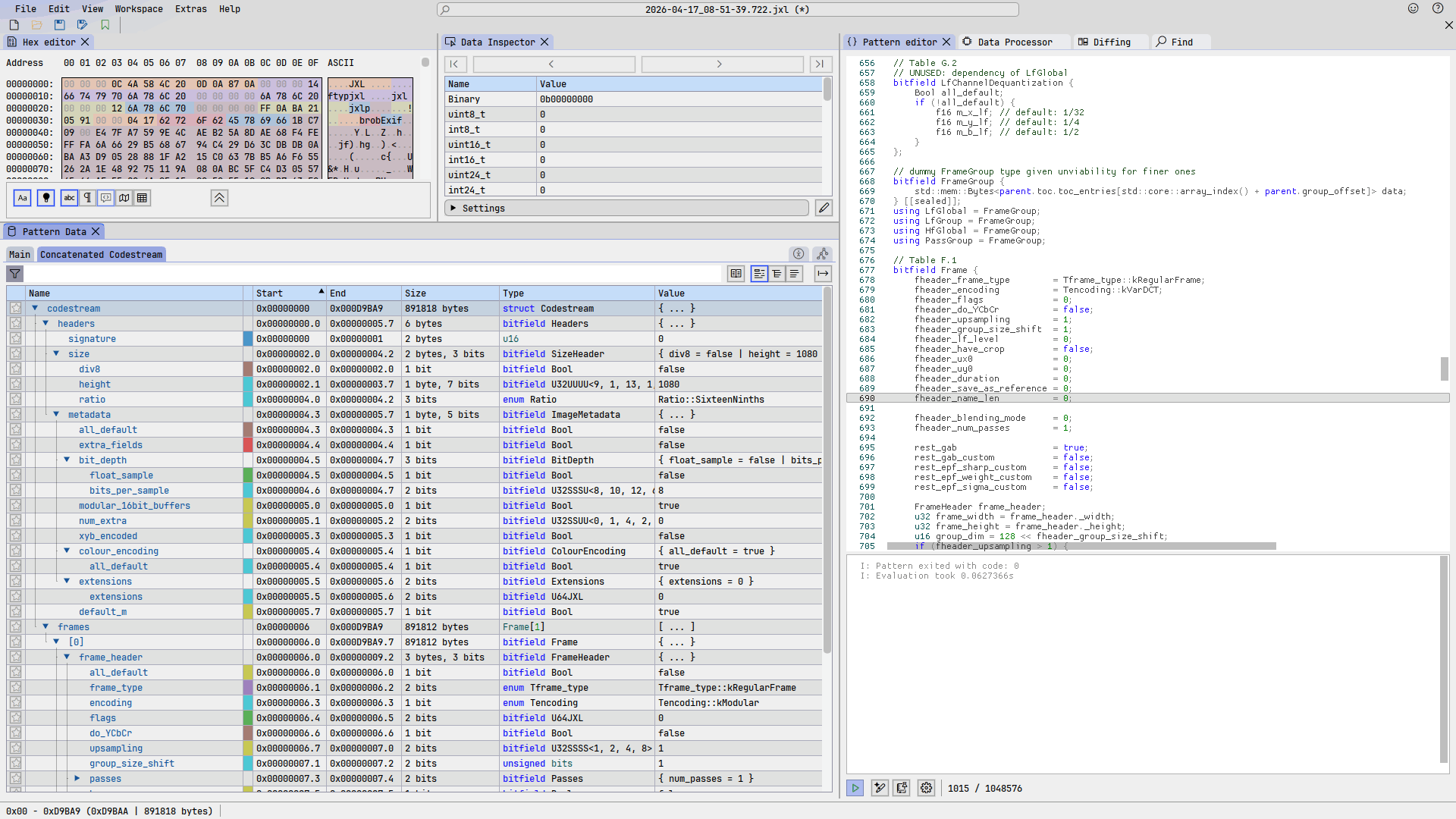

It’s quite snazzy to see it in action:

And yes, in the end, I did end up fixing the bug with the help of this pattern. It was quite easy to see what caused it when I could quickly visualize that it happens on a byte boundary!

the pattern language…

Since this was my first imhex pattern, I made sure to scour the entire documentation and all the different avenues I could approach writing it from. While writing, I mentally noted aspects of the language that poked some thorns in my side. First off, things that jumped out at me:

• I do not enjoy that variables are syntactically scoped like a conventional language. I have to use global variables to simultaneously track state and assign “default” values to fields, since variables in, say, an if block are scoped to said if block.
  • I think the greatest “simple” thing that would make the language much better is if variables in a pattern were scoped to the pattern itself. This alone would eliminate most of the global variable duplication in the JXL pattern.
  • In addition, being able to assign “default” values to memory-backed variables that would serve as its value in case it never gets matched in the file.
• For some reason, template types don’t work on bitfields. However, non-type template parameters do? Very confusing.
  • This means I had to create five separate types for JXL’s U32 parameterizations, since they’re bit-level types.
• I don’t understand why untagged unions exist when conditional parsing is a thing. the documentation only gives the use case of inspecting data as multiple types, but that could also be accomplished by a change to the pattern data viewer—some kind of format casting built in or something.

In an overall sense, the language feels like if C++ was kludged into a binary file pattern matcher, with a few minor rust-isms taken up along the way, rather than built from the ground up as its own DSL for its own domain.

So, it got me thinking about the language, and my mind wandered off many times along the way. A few scattered ideas came out of it all—some loose thoughts on how I’d want a pattern language to operate and feel like:

• No treating bytes as something absolutely fundamental to the pattern language; bits and bytes should exist in harmony rather than separated by different types.
  • As a result, there’s only one type for “collections” of things, and you can control whether it’s padded by default or bit-packed by default, with a quick way to make exceptions for individual fields.
• Patterns are declarative rather than mimicing how an imperative language would go through something. This would alleviate cognitive disconnect when combined with pattern-scoped variables.
  • Combine this with “flattening” the syntax to further hound the idea that only pattern-level scopes matter. Say, instead of if (parse_x) { x : u8 }, it’s x : u8 if parse_x.
• Variables are immutable; patterns can’t affect the file. A variable’s value is determined only by its memory or, if its condition for existing isn’t met, some other method of assigning a default value (adding on to the if? x : u8 if parse_x else 0? Propagating sum types of non-existent variables?).
• It would be cool if there was some kind of external plugin system that allowed more complex tasks to be done in a less domain-specific language (like, say, entropy decoding).

The overarching idea is just that matching patterns against a file would fit better as a more declarative (“functional”?) paradigm than how imhex operates. Alas, a complete, exact syntax escapes me, since I haven’t thought about it too much. I didn’t find much more enjoyment on thinking about what could be something when implementing it would be quite a large undertaking for little benefit (I don’t reverse engineer formats often enough, and imhex is already quite dominant, so would anyone even use a different pattern language?). But it’s nice to passively think about.

So many ideas, so little time.
